the 54173~dm54173~dm74173 series of four-bit tri-state registers have three-state outputs that can drive high-impedance loads and low-impedance loads without the need for interface or pull-up components to drive the bus lines in a bus-organized system

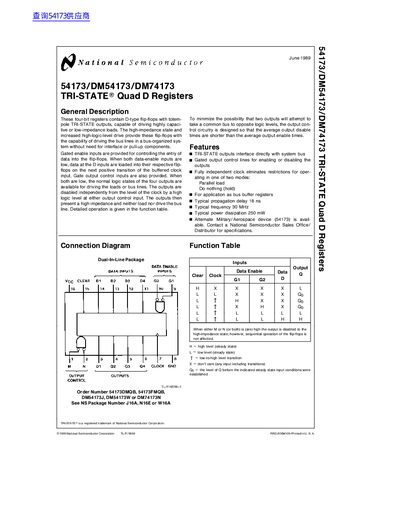

This document provides a datasheet for the 54173/DM54173/DM74173 TRI-STATE Quad D Registers. These four-bit registers contain D-type flip-flops with totem-pole TRI-STATE outputs, capable of driving highly capacitive or low-impedance loads. The high-impedance state and increased high-logic-level drive provide these flip-flops with the capability of driving the bus lines in a bus-organized system without need for interface or pull-up components. Gated enable inputs are provided for controlling the entry of data into the flip-flops.
| Typical propagation delay | 18 ns |
|---|---|
| Typical frequency | 30 MHz |
| Typical power dissipation | 250 mW |
| High Level Input Voltage (Min) | 2 V |
| Low Level Input Voltage (Max) | 0.8 V |
The typical propagation delay is 18 ns.
The typical operating frequency is 30 MHz.
