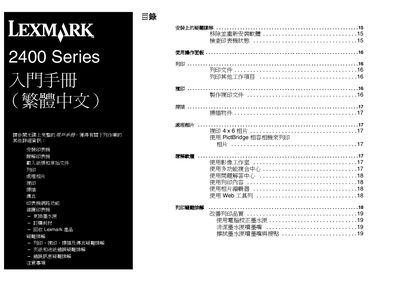

Lexmark 2400 Series Quick Start Guide
This guide introduces the Lexmark 2400 Series printer, showing how to install the device, connect it to a computer, and start basic functions such as printing, copying, scanning and using the Multi‑function Center. It also explains how to use the control panel and the Lexmark Web Tools for advanced settings.
Additional sections cover common troubleshooting steps, paper handling guidelines, and tips for improving print quality, including recommended paper types and cleaning procedures. This manual is written in Japanese.
Lexmark 2400 Series specifications
| Speed (Fast Draft, 12 cpi) | 510 cps (2480/2481) |
|---|---|
| Memory | 96 KB (2480/2481) |
| Resolution (NLQ) | 240 × 144 dpi |
| Maximum Print Line | 8 in. (203.2 mm) for 2480/2490 |
| Size (WxDxH) | 19.4 × 11.4 × 7.7 in. (2480/2490) |
| Weight | 17.6 lb (8 kg) for 2480/2490 |
| MTBF | 12,500 hours at 25% duty |
| Connectivity | USB standard, optional Ethernet, Token‑Ring, Serial, Coax/Twinax, Wireless |
All Lexmark 2400 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What does it mean if the power button is not lit?
A non‑lit power button indicates a power issue; ensure the supplied power cord is connected to a proper outlet and the correct power supply is used.
How can I resolve a paper jam?
Refer to the troubleshooting section, locate the jam (printer, paper support, or banner paper) and clear it according to the provided instructions.
What connectivity interfaces does the Lexmark 2400 Series printer support?
It includes a USB standard interface and optional Ethernet, Token‑Ring, Serial, Coax/Twinax, and Wireless connections.
What media types can the Lexmark 2400 Series printer handle?
The printer can handle continuous forms, cut sheets, labels, and envelopes, with various paper‑handling options such as front push/pull and tractor feeds.
What should I do if the printer does not print?
Check that the USB cable is securely connected, reinstall the printer software, and restart the computer and printer.
How do I start the Multi‑function Center?
Press the Start button on the control panel, then select "Multi‑function Center" from the menu.
