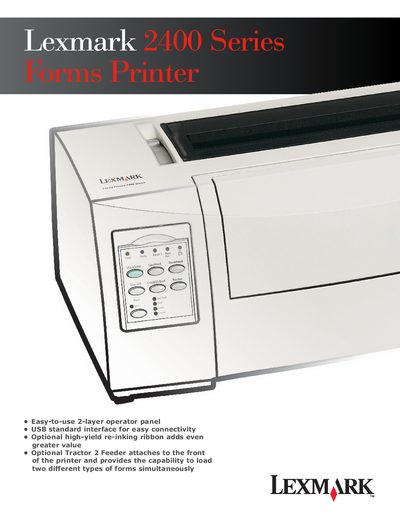

This document describes the features and characteristics of the Lexmark 2400 Series Forms Printer, including an easy-to-use 2-layer operator panel, USB standard interface, optional high-yield re-inking ribbon, and optional Tractor 2 Feeder for loading two different types of forms simultaneously.
The Lexmark 2400 Series printer offers an easy‑to‑use 2‑layer operator panel, USB standard interface, optional high‑yield re‑inking ribbon, and an optional Tractor 2 Feeder for loading two form types simultaneously. It supports multiple emulations (IBM PPDS, Epson, Okidata MICROLINE) and a range of network options including Ethernet, Token‑Ring, Serial, Coax/Twinax, and Wireless.
Technical specifications include 9‑pin or 24‑pin dot‑matrix technology, speeds up to 510 characters per second, memory of 96 KB or 79.5 KB, resolutions of 240 × 144 dpi (NLQ) or 360 × 360 dpi (APA Graphics), and a maximum print line of 8 in. or 13.6 in. depending on model. The printer measures 19.4 × 11.4 × 7.7 in. (2480/2490) or 25 × 11.4 × 7.7 in. (2481/2491) and weighs up to 21.6 lb.
| Speed (Fast Draft, 12 cpi) | 510 cps (2480/2481) |
|---|---|
| Memory | 96 KB (2480/2481) |
| Resolution (NLQ) | 240 × 144 dpi |
| Maximum Print Line | 8 in. (203.2 mm) for 2480/2490 |
| Size (WxDxH) | 19.4 × 11.4 × 7.7 in. (2480/2490) |
| Weight | 17.6 lb (8 kg) for 2480/2490 |
| MTBF | 12,500 hours at 25% duty |
| Connectivity | USB standard, optional Ethernet, Token‑Ring, Serial, Coax/Twinax, Wireless |
It includes a USB standard interface and optional Ethernet, Token‑Ring, Serial, Coax/Twinax, and Wireless connections.
The printer can handle continuous forms, cut sheets, labels, and envelopes, with various paper‑handling options such as front push/pull and tractor feeds.
The 2480 and 2481 models print at 510 characters per second in Fast Draft at 12 cpi.
