IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368(J&S) are high-voltage, high-speed power MOSFET and IGBT drivers with three independent high-side and low-side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized power drivers with high voltage tolerance, high speed, and low drive current. This series has low dV/dt and low di/dt pin output, which can effectively reduce EMI noise and provide good system reliability for design engineers.
The IR2136 family provides high‑voltage, high‑speed MOSFET and IGBT gate drivers for three‑phase applications. Each device contains three independent high‑side and three low‑side drivers, floating channel operation up to +600 V, and built‑in over‑current and undervoltage protection.

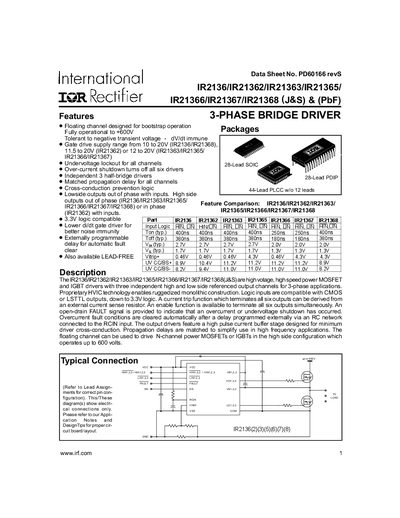

The document lists recommended operating conditions, static and dynamic electrical characteristics, functional block diagrams, lead assignments, and package options such as 28‑lead PDIP, 28‑lead SOIC and 44‑lead PLCC. Ordering information and lead‑free marking details are also included.
| Gate drive supply range | 10‑20 V (IR2136/IR21368), 11.5‑20 V (IR21362), 12‑20 V (IR21363/IR21365/IR21366/IR21367) |
|---|---|
| Maximum floating channel voltage | +600 V |
| Undervoltage lockout | Enabled for all channels |
| Over‑current shutdown | Turns off all six drivers |
| Turn‑on propagation delay (ton) | 300 ns typical for IR2136 |
The floating channel is fully operational up to +600 V.
It ranges from 10 V to 20 V for IR2136/IR21368, 11.5 V to 20 V for IR21362, and 12 V to 20 V for the other variants.
