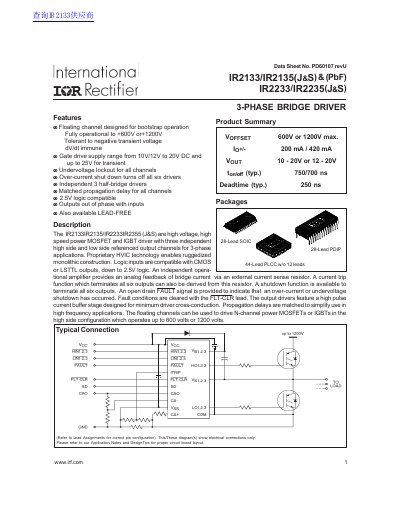

International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet

The IR2133IR2135/IR2233IR2355 (J&S) are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications.

Brand: International Rectifier
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 216 KB
Published: 10 July, 2012
Updated: 30 September, 2023
Models: IR2133, IR2135, IR2233, IR2235
MD5 checksum: 602B308A91AD7FD154BE59F9BF42E6E8
PDF: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet PDF

About this manual

This document is a technical datasheet for the International Rectifier IR2133/IR2135 (600V) and IR2233/IR2235 (1200V) series of 3-phase bridge drivers. These devices feature three independent high-side and low-side referenced output channels designed to drive N-channel power MOSFETs or IGBTs in 3-phase applications.

What's inside

Features
Product Summary
Absolute Maximum Ratings
Recommended Operating Conditions
Dynamic Electrical Characteristics
Static Electrical Characteristics
Functional Block Diagram
Lead Definitions

Specifications

High side floating supply voltage (IR2233/IR2235)	-0.3 to 1225 V
High side floating supply offset voltage (IR2133/IR2135)	600 V

Frequently asked questions

What is the maximum offset supply voltage for the IR2133/IR2135?

The maximum offset supply voltage for the IR2133/IR2135 series is 600V.

What is the typical deadtime for these drivers when used with 1200V?

The typical deadtime is 250 ns.
