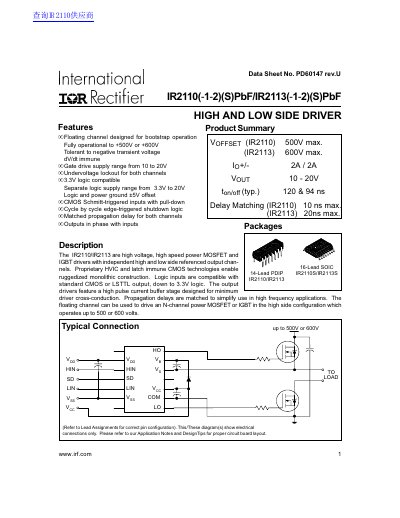

The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts. The product has various features such as a floating channel designed for bootstrap operation, compatibility with standard CMOS or LSTTL output for logic inputs, and matched propagation delay.
The IR2110 and IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. They utilize proprietary HVIC and latch immune CMOS technologies for ruggedized monolithic construction. The devices feature a floating channel designed for bootstrap operation, fully operational to +500V for the IR2110 and +600V for the IR2113.
| Gate drive supply range | 10 to 20V |
|---|---|
| Logic supply range | 3.3V to 20V |
| Turn-on propagation delay (typ.) | 120 ns |
| Turn-off propagation delay (typ.) | 94 ns |
| Delay Matching (IR2110) | 10 ns max. |
Yes, the logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic.
The typical turn-on propagation delay is 120 ns for the IR2110 and 94 ns for the IR2113.
