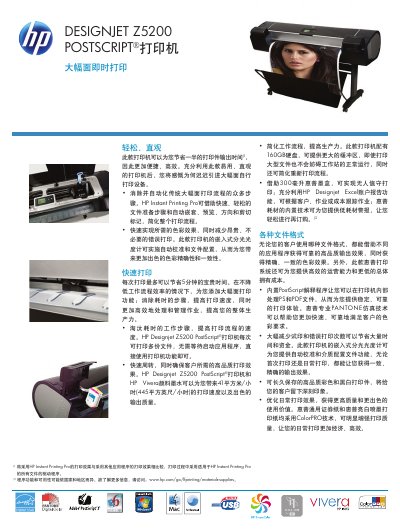

HP Designjet Z5200 Printer Manual
The Designjet Z5200 is a 44‑inch large‑format PostScript printer that delivers high‑speed, high‑quality color output with HP Vivera pigment inks. It supports fast printing rates of up to 41 m²/h and a maximum resolution of 2400 × 1200 dpi, making it suitable for technical, architectural, and graphic applications.
This manual includes detailed product specifications, a list of accessories and consumables, installation guidance, connectivity options, supported media types, and software drivers. It also covers environmental requirements, safety certifications, and warranty information to help users set up and maintain the printer efficiently. This manual is written in Chinese.
HP Z5200 specifications
| Print speed (color, fast mode) | 41 m²/h (445 sq ft/h) |
|---|---|
| Maximum resolution | 2400 × 1200 dpi |
| Maximum print width | 44 inches |
| Processor and memory | Intel® LE80578 800 MHz, 48 GB virtual memory, 160 GB hard drive |
| Connectivity | Gigabit Ethernet, USB 2.0, EIO Jetdirect slot |
| Print languages | Adobe PostScript 3, Adobe PDF, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP‑GL/2 |
| Ink type | HP Vivera pigment ink |
| Maximum power consumption | 170 W (max), <12 W (energy‑saving mode) |
All HP Z5200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum print speed of the Designjet Z5200?
The printer can print up to 41 m² per hour (445 sq ft/h) in fast mode.
Which print languages does the printer support?
It supports Adobe PostScript 3, Adobe PDF, TIFF, JPEG, CALS G4, HP PCL 3 GUI, and HP‑GL/2.
What resolution does the printer support?
The printer supports a maximum resolution of 2400 × 1200 dpi.
What connectivity options are available?
It includes a Gigabit Ethernet (1000Base‑T) port and a USB 2.0 port.
