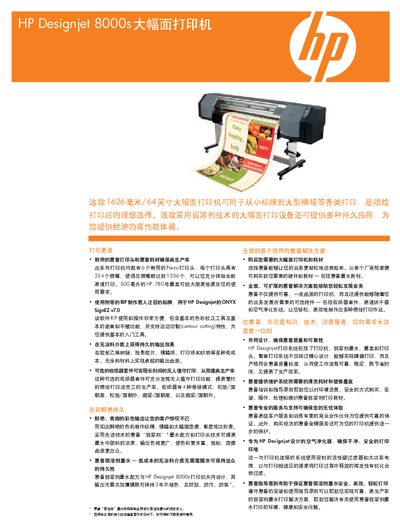

HP Designjet 8000s Large Format Printer User Manual
This manual introduces the HP Designjet 8000s large‑format printer, detailing its six durable Piezo print heads, 1536 total nozzles, and 500 ml HP 780 ink cartridges. It explains the use of ONYX SignEZ v7.0 RIP software for color correction, nesting, and contour cutting, and describes the weak‑solvent ink technology that delivers long‑lasting, scratch‑resistant prints on various media.
The guide also covers optional accessories such as the roll feeder with four winding modes, high‑speed dryer, air‑purification system, and cutter blade kit. Technical specifications, environmental limits, power requirements, and safety certifications are listed, along with warranty and service information. This manual is written in Chinese.
HP 8000s specifications
| Print speed (optimal) | 4.08 m²/h |
|---|---|
| Print speed (fast) | 15.3 m²/h |
| Maximum print resolution | 720 × 720 dpi |
| Maximum media width | 1626 mm (64 in) |
| Ink cartridge capacity | 500 ml (HP 780) |
| Memory | 192 MB |
| Power consumption (active) | 150 W (printer) / 1350 W (heater) |
| Noise level (operating) | 67.9 dB(A) |
| Operating temperature range | 15 °C – 30 °C |
| Weight (printer only) | 217 kg |
All HP 8000s documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the capacity of the HP 780 ink cartridge?
The HP 780 ink cartridge holds 500 ml of ink.
How many roll winding modes does the optional roll feeder provide?
The roll feeder offers four winding modes: loose/inside, loose/outside, tight/inside, and tight/outside.
