Start here

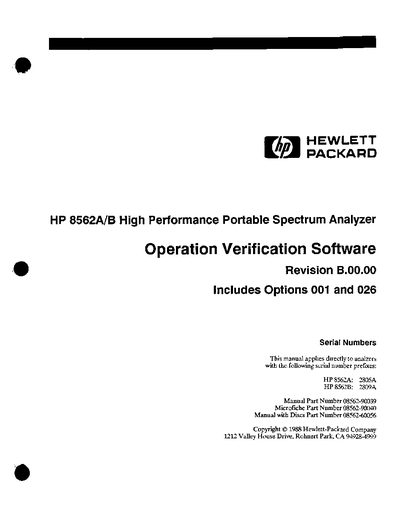

HP 8562A/B Operation Verification Software User Manual
The Operation Verification software provides an automatic performance test for the HP 8562A/B Portable Spectrum Analyzer, covering 80%‑85% of the manual performance tests in less than 60 minutes. It verifies that the analyzer operates within its specifications and helps identify when additional manual testing is required.
The software runs on HP Model 216, 236, or 310 computers with HP BASIC 2.0, 3.0 or 4.0 and at least 250 KB of free memory. Required test equipment, controller setup, HP‑IB connections, and warm‑up procedures are detailed, and error messages guide corrective actions.
HP 8562A specifications
| Operating temperature range | 20 to 30 °C |
|---|---|
| Warm‑up time before Frequency Response test | 30 minutes |
| Test coverage | 80 %‑85 % of manual tests in < 60 min |
| Supported controller computers | HP Model 216, 236, or 310 |
| Serial number prefixes | HP 8562A 2805A; HP 8562B 2809A |
Source: HP 8562A/B Operation Verification Software User Manual
All HP 8562A documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precaution must be taken before switching the analyzer on?
The instrument must be properly grounded through the protective conductor of the AC power cable before it is switched on.
How do I calibrate the analyzer for accurate measurements?
Perform the Trace Alignment and Reference Level Calibration procedures described in Chapter 2.
What computers are required to run the HP 8562A/B operation verification software?
The software runs on an HP Model 216, Model 236, or Model 310 computer with HP BASIC 2.0, 3.0 or 4.0 and at least 250 KB of free memory.
From: HP 8562A/B Operation Verification Software User Manual
What does the software do if the HP 8562A/B does not respond at the listed HP‑IB address?
It displays the message “Doesn't respond at address listed” and advises checking the HP‑IB connections and address.
From: HP 8562A/B Operation Verification Software User Manual
