Key facts
- Brand
- Haier
- Model
- XQB50-20A
- Category
- Washing Machines
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-19
Start here

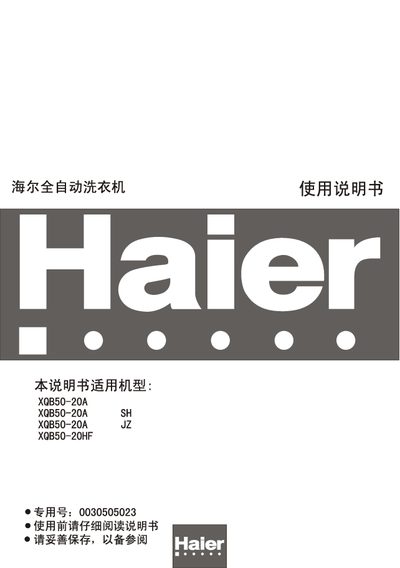

Haier XQB50-20A/50-20A SH/50-20A JZ/50-20HF Manual
This manual explains how to safely install and use the Haier XQB50-20A washing machine. It includes safety precautions such as using a grounded power source, avoiding wet hands, and not operating the machine in humid locations.
The guide covers installation of water inlet and drain pipes, proper loading of laundry, detergent usage, operation cycles, post‑wash care, and troubleshooting common issues. Warranty information and service contacts are also provided. This manual is written in Chinese.
Haier XQB50-20A specifications
| Rated washing capacity (XQB45-20) | 4.5 kg |
|---|---|
| Rated washing capacity (XQB50-20A) | 5.0 kg |
| Water pressure range | 0.03 – 0.78 MPa |
| Noise level (washing) | 56 dB(A) |
| Noise level (spin) | 66 dB(A) |
Source: Haier XQB50-20A XQB45-20automate washing machine Manual
All Haier XQB50-20A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for this washing machine?
The washing machine is covered by a three‑year warranty.
What safety precautions must be taken before using the washing machine?
The machine must be connected to a grounded power source, the grounding rod must be buried in the earth, and the unit should not be placed in humid locations such as bathrooms.
From: Haier XQB50-20A XQB45-20automate washing machine Manual
What are the recommended water pressure and water volume settings?
The machine operates with water pressure between 0.03 and 0.78 MPa, and water volume can be selected from 1/15 L up to 10/42 L depending on the wash level.
From: Haier XQB50-20A XQB45-20automate washing machine Manual
