The document contains information about Haier brand washing machine products, including the XQB45-20 model with a weight of 4.5kg and 5.0kg. Additionally, it mentions some product dimensions and specifications.

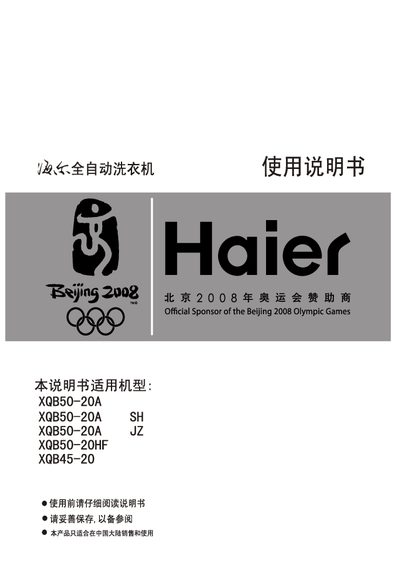

This manual covers safety precautions, proper installation, and adjustment of the Haier XQB50-20A and XQB45-20 front‑loading washing machines. It explains how to connect a grounded power source, position the unit on a level floor, and secure the drainage hose.
The guide also details pre‑wash preparation, washing cycles, detergent usage, after‑wash care, and troubleshooting common faults. Technical specifications such as capacity, water pressure range, and noise levels are listed for reference. This manual is written in Chinese.
| Rated washing capacity (XQB45-20) | 4.5 kg |
|---|---|
| Rated washing capacity (XQB50-20A) | 5.0 kg |
| Water pressure range | 0.03 – 0.78 MPa |
| Noise level (washing) | 56 dB(A) |
| Noise level (spin) | 66 dB(A) |
The machine must be connected to a grounded power source, the grounding rod must be buried in the earth, and the unit should not be placed in humid locations such as bathrooms.
The machine operates with water pressure between 0.03 and 0.78 MPa, and water volume can be selected from 1/15 L up to 10/42 L depending on the wash level.
