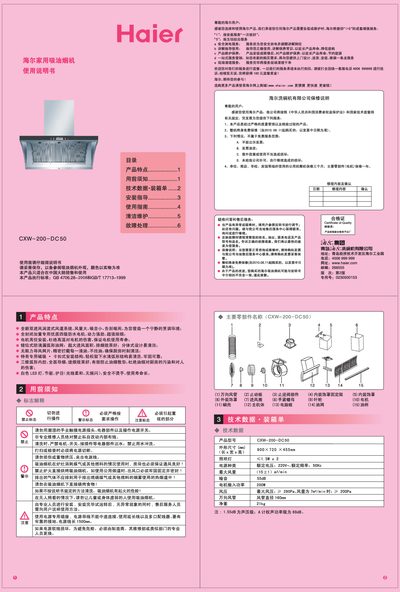

This manual introduces the CXW-200-DC50 range hood, its key features, safety precautions, and technical data. It includes a product overview, installation guidance, and a detailed parts list to help users set up the appliance correctly.
The guide also covers daily operation, cleaning and maintenance procedures, and a troubleshooting table for common faults. Safety warnings, wiring requirements, and recommended tools are provided to ensure safe and reliable use. This manual is written in Chinese.
| Dimensions (L×W×H) | 900 mm × 720 mm × 455 mm |
|---|---|
| Lighting power | 1.5 W × 2 |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Maximum airflow | 15 m³/min |
| Noise level | 55 dB |
| Motor input power | 200 W |
| Maximum wind pressure | 280 Pa |
| Duct diameter | 160 mm |
| Net weight | 21 kg |
Make sure the power plug is fully inserted; if the plug is loose, reconnect it properly.
The fan blades should be cleaned every three months to maintain proper operation.
