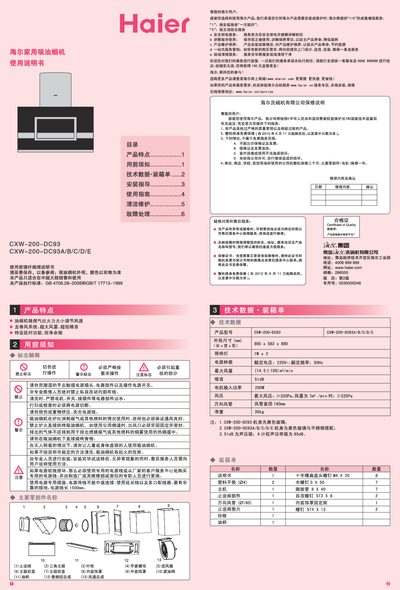

This manual explains how to install the Haier CXW-200-DC93 range hood safely. It covers site requirements, wall preparation, mounting procedures, and connection of the flexible duct. Safety warnings emphasize proper ventilation, avoiding water exposure, and using only the supplied power cord.
Operating instructions describe the control panel functions, speed settings, lighting, and delay timer. Detailed cleaning and maintenance steps show how to clean the oil cup, oil filter, and fan blades, as well as recommended periodic servicing. A fault‑handling table helps diagnose common issues such as power loss, abnormal noise, or poor suction. This manual is written in Chinese.
| Dimensions (mm) | 895 x 583 x 890 |
|---|---|
| Lighting Lamp | 1W x 2 |
| Rated Voltage / Frequency | 220 V, 50 Hz |
| Motor Input Power | 200 W |
| Wind Pipe Diameter | 160 mm |
| Net Weight | 30 kg |
Check that the power plug is fully inserted, verify the mains voltage, and ensure any fuse or circuit breaker is not tripped.
Press the delay key again; the timer will be cancelled.
