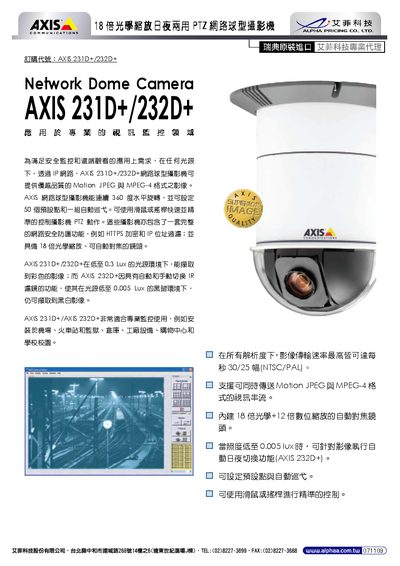

The Axis 231D+/232D+ network dome camera manual provides specifications, installation, configuration, and operation details for the PTZ camera.
The Axis 231D+/232D+ network dome camera is a professional surveillance device with 18× optical zoom, 12× digital zoom, day/night operation, and PTZ control. It supports Motion JPEG and MPEG‑4 video streams, HTTPS encryption, IP address filtering, and IEEE802.1X security.
This manual covers hardware specifications, power requirements, mounting dimensions, image settings, PTZ operation, alarm and event management, network protocol support, and step‑by‑step installation and configuration procedures. This manual is written in Chinese.
| Optical Zoom | 18× |
|---|---|
| Digital Zoom | 12× |
| Minimum Illumination (Color) | 0.3 lux at 30IRE |
| Minimum Illumination (B/W, AXIS 232D+) | 0.005 lux at 30IRE |
| Horizontal Rotation | 360° continuous |
| Vertical Tilt | 0° – 90° (±3°) |
| Image Sensor | 1/4" Sony EXview HAD CCD |
| Maximum Resolution | 704×480 (NTSC) / 704×576 (PAL) |
| Power Supply | 19‑28 VAC, 24‑40 VDC |
| Dimensions | 225 × 144 × 144 mm |
| Preset Points | Up to 50 |
| Security Features | HTTPS encryption, IP address filtering, IEEE802.1X |
The camera can capture color images down to 0.3 lux at 30 IRE.
Up to 50 preset points can be configured.
It includes HTTPS encryption, IP address filtering, and IEEE802.1X authentication.
The camera operates from 19‑28 VAC or 24‑40 VDC.
