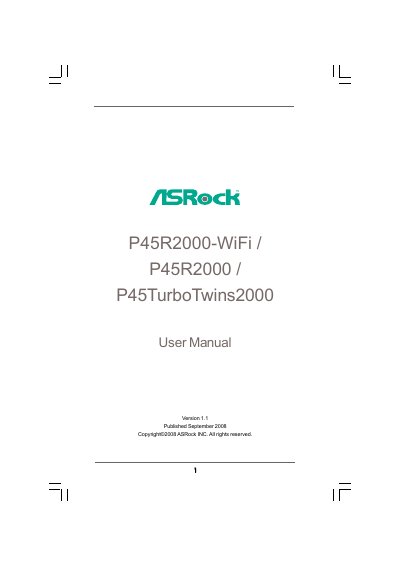

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard User Manual
This manual covers the ASRock P45R2000‑WiFi, P45R2000, and P45TurboTwins2000 ATX motherboards. It includes package contents, hardware specifications, layout diagrams, and step‑by‑step installation instructions for CPU, memory, storage, and expansion cards.
The document also explains BIOS configuration, Dual‑LAN teaming, Wi‑Fi‑802.11g module operation, RAID setup, and software support on the included support CD. Safety notices, over‑clocking warnings, and regulatory compliance information are provided throughout.
ASRock P45R2000 specifications
| Form Factor | ATX 12.0" x 9.6" (30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | 775‑Pin LGA 775 |
| Supported CPUs | Intel® Core2 Extreme / Core2 Quad / Core2 Duo / Pentium® Dual Core / Celeron® |
| Chipset | Northbridge Intel® P45, Southbridge Intel® ICH10R |
| Memory Slots | 4 DDR3 DIMM slots, 2 DDR2 DIMM slots |
| Maximum Memory | 8 GB total |
| SATA Ports | 6 SATAII 3.0 Gb/s connectors (RAID supported) |
| LAN | Realtek RTL8111B/RTL8111C Gigabit LAN |
| Audio Codec | ALC890 (P45R2000‑WiFi / P45R2000) or ALC888 (P45TurboTwins2000) |
Source: ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard Installation Guide
