Key facts
- Brand
- ASRock
- Model
- P45X3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

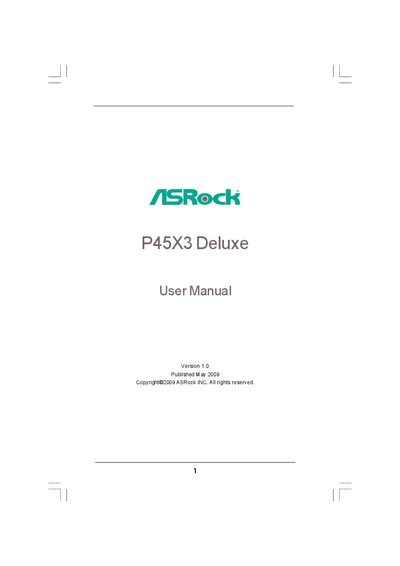

ASRock P45X3 Deluxe Motherboard User Manual
This manual introduces the ASRock P45X3 Deluxe motherboard, lists the package contents, and details the hardware specifications such as the ATX form factor, LGA 775 socket, Intel P45 chipset, and DDR3 memory support. It also explains how to install the CPU, memory modules, expansion cards, and connect peripherals.
Further sections cover the BIOS Setup Utility with navigation and configuration options, as well as software support including the drivers and utilities provided on the Support CD. Contact information and troubleshooting guidance are included at the end of the document.
ASRock P45X3 specifications
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | LGA 775 |
| Northbridge Chipset | Intel P45 |
| Southbridge Chipset | Intel ICH10 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| SATA Connectors | 6 x SATAII 3.0 Gb/s ports |
| USB Ports | 7 x USB 2.0 ports |
| LAN Interface | Realtek RTL8111 DL Gigabit LAN |
| Audio Codec | Realtek ALC888 |
| BIOS | 8 Mb AMI BIOS |
All ASRock P45X3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the P45X3 Deluxe motherboard use?
It uses an LGA 775 socket for Intel Core 2 and compatible processors.
How many SATA ports are available on this motherboard?
The board provides six SATAII 3.0 Gb/s connectors for storage devices.
Which Windows operating systems are supported by the P45X3 Deluxe motherboard?
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
How many SATAII connectors does the motherboard provide?
The board includes six SATAII 3.0 Gb/s connectors with NCQ, AHCI, and Hot‑Plug support.
