Key facts
- Brand
- ASRock
- Model
- P45DE
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN
- Last added
- 2012-03-15
Start here

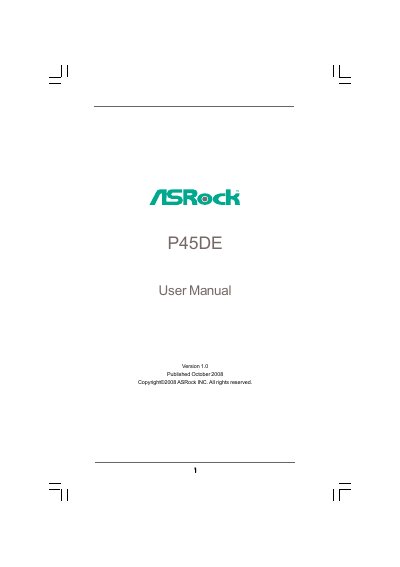

ASRock P45DE Motherboard User Manual
This manual introduces the ASRock P45DE ATX motherboard, describing its features, package contents, and overall design. It guides users through hardware installation, including CPU, memory, expansion cards, and connectors, and explains how to set up the support CD and operating system.
Further sections cover the BIOS Setup Utility with detailed configuration options, hardware health monitoring, and security settings, as well as software support information such as driver installation and utilities. Technical specifications, safety cautions, and warranty notices are also included.
ASRock P45DE specifications
| Form Factor | ATX (12.0‑in x 8.5‑in, 30.5 cm x 21.6 cm) |
|---|---|
| CPU Socket | LGA 775 supporting Intel Core 2, Pentium Dual Core, Celeron Dual Core |
| SATA Connectors | 6 × SATAII 3.0 Gb/s (NCQ, AHCI, Hot‑Plug) |
| Audio Codec | VIA VT1708S 7.1‑channel HD Audio |
| LAN | Realtek RTL8111DL Gigabit Ethernet, Wake‑On‑LAN |
All ASRock P45DE documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which Windows operating systems are supported by the ASRock P45DE motherboard?
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
How many SATAII connectors does the motherboard provide?
The board includes six SATAII 3.0 Gb/s connectors with NCQ, AHCI, and Hot‑Plug support.
