Key facts
- Brand
- ASRock
- Model
- G41MH-GE
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN
- Last added
- 2012-03-15
Start here

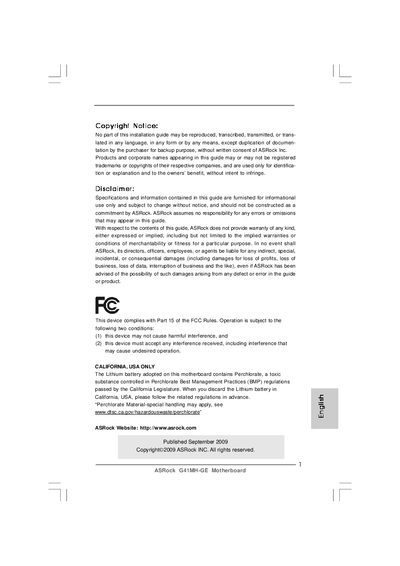

ASRock G41MH-GE Motherboard Quick Installation Guide
This guide introduces the ASRock G41MH‑GE Micro‑ATX motherboard, showing the board layout, I/O panel connections, and required hardware. It also lists the package contents and gives safety cautions.
The document includes detailed specifications such as supported CPUs, memory types, graphics options, audio and networking interfaces, and installation requirements for Windows operating systems and full‑HD video playback.
ASRock G41MH-GE specifications
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | LGA 775 (775‑Pin) |
| Memory slots | 4 DDR2 DIMM slots |
| Maximum memory | 8 GB |
| Chipset | Intel G41 northbridge, ICH7 southbridge |
| Integrated graphics | Intel GMA X4500 |
| Video outputs | VGA/D‑Sub, DVI‑D, HDMI |
| Audio codec | VIA VT1708S (7.1 CH) |
| LAN controller | Realtek RTL8111DL (Gigabit) |
| SATA ports | 4 SATAII 3.0 Gb/s connectors |
Source: ASRock G41MH-GE Motherboard Quick Installation Guide
All ASRock G41MH-GE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What CPU socket does the G41MH‑GE motherboard use?
It uses an LGA 775 (775‑Pin) socket.
How many DDR2 memory slots are available?
The board provides four DDR2 DIMM slots.
How many SATA ports does the ASRock G41MH‑GE motherboard have?
It has four SATAII ports, labeled SATAII_1 through SATAII_4.
What operating systems are supported by the ASRock G41MH‑GE motherboard?
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP, and XP 64‑bit.
How many USB 2.0 ports are provided on the rear panel?
Four USB 2.0 ports are available on the rear I/O panel.
