Key facts
- Brand
- ASRock
- Model
- G41MH-LE3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN
- Last added
- 2012-03-15
Start here

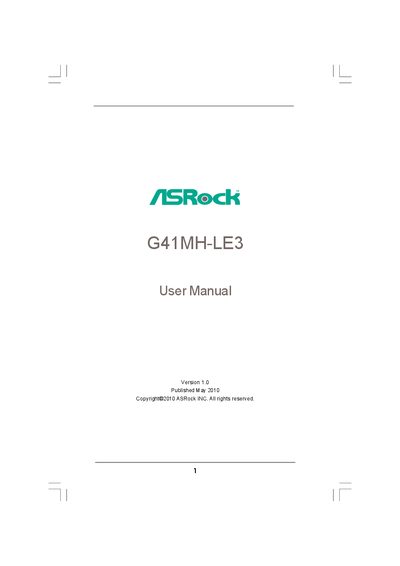

ASRock G41MH-LE3 Motherboard User Manual
This manual introduces the ASRock G41MH-LE3 Micro‑ATX motherboard, lists the package contents, and details the hardware layout, connectors, and safety precautions. It also guides users through CPU, memory, and expansion slot installation, as well as dual‑monitor setup.
The BIOS Setup Utility chapter explains menu navigation, configuration options, and how to save or discard changes. The final chapter covers software support, including the Support CD, driver installation, and supported Windows operating systems.
ASRock G41MH-LE3 specifications
| Form Factor | Micro ATX (9.6" x 8.4") |
|---|---|
| CPU Socket | 775‑Pin LGA 775 |
| Chipset | Northbridge Intel G41 / Southbridge Intel ICH7 |
| Memory Slots | 2 x DDR3 DIMM (max 8 GB) |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1, 2 x PCI |
| SATA Connectors | 4 x SATAII 3.0 Gb/s |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC662 (5.1‑channel HD Audio) |
| BIOS Size | 8 Mb AMI BIOS |
All ASRock G41MH-LE3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the G41MH-LE3 motherboard use?
It uses a 775‑Pin LGA 775 socket.
How many DDR3 memory slots are provided?
The board has two DDR3 DIMM slots.
What CPU socket does the G41MH-LE3 motherboard use?
It uses an LGA 775 socket.
How many DDR3 memory slots are available?
The board provides two DDR3 DIMM slots.
What operating systems are supported by the G41MH-LE3 motherboard?
It supports Microsoft Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, XP and XP 64‑bit.
How many SATA ports are available on the board?
The motherboard provides four SATAII 3.0 Gb/s connectors.
