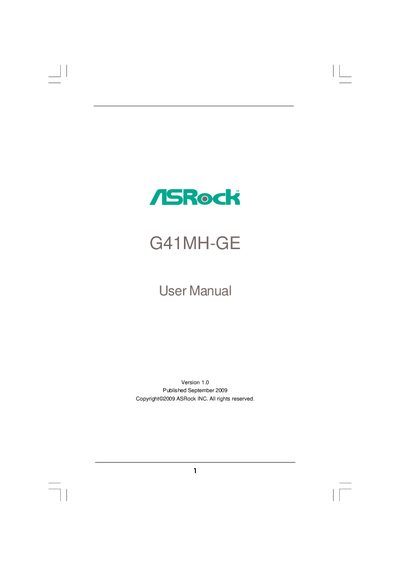

ASRock G41MH-GE Motherboard User Manual

This is a G41MH-GE user manual, which introduces the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 57
File format: PDF
File size: 451 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: G41MH-GE
MD5 checksum: C5F6812332C4D438EDB3C29756E8892C
PDF: ASRock G41MH-GE Motherboard User Manual PDF

About this manual

This manual guides users through the installation, configuration, and operation of the ASRock G41MH‑GE Micro‑ATX motherboard. It includes safety notices, FCC compliance, and detailed hardware descriptions.

The document covers package contents, step‑by‑step CPU and memory installation, BIOS setup options, connector layouts, supported operating systems, and driver/utilities installation from the support CD.

What's inside

Installation
BIOS Setup Utility
Specifications
Hardware Connections
Software Support
Overclocking Features

Specifications

Form Factor	Micro ATX (9.6" x 9.6")
CPU Socket	LGA 775 supporting Intel Core 2, Pentium Dual Core, Celeron Dual Core
Chipset	Northbridge Intel G41, Southbridge Intel ICH7
Expansion Slots	1× PCI‑Express x16, 1× PCI‑Express x1, 2× PCI
LAN	Gigabit LAN (Realtek RTL8111DL)

Frequently asked questions

What operating systems are supported by the ASRock G41MH‑GE motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP, and XP 64‑bit.

How many USB 2.0 ports are provided on the rear panel?

Four USB 2.0 ports are available on the rear I/O panel.

What is the maximum memory capacity supported?

The motherboard can support up to 8 GB of DDR2 memory.
