Key facts
- Brand
- ASRock
- Model
- CONROE1333-ESATA2
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

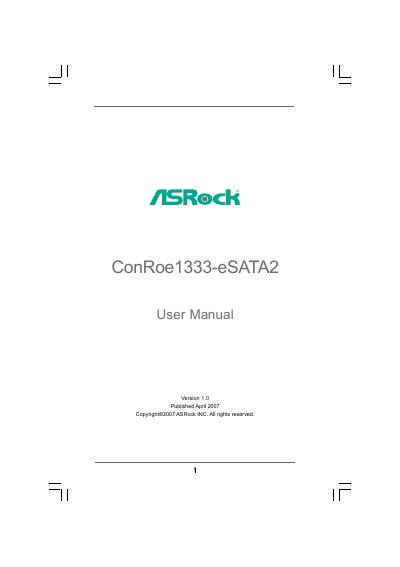

ASRock ConRoe1333-eSATA2 User Manual
User Manual 61 pages · 724 KB · EN
This manual covers everything needed to install and configure the ASRock ConRoe1333-eSATA2 ATX motherboard, including package contents, hardware layout, and required tools. It also explains the supported CPUs, memory types, expansion slots, and rear‑panel connectors.
Detailed sections guide you through BIOS configuration, Windows driver installation, RAID setup, and troubleshooting, with safety warnings and warranty information. The support CD contents and contact details are also provided.
ASRock CONROE1333-ESATA2 specifications
| Form Factor | ATX 12.0‑in x 8.6‑in (30.5 cm x 21.8 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Dual Core, Core2 Extreme, Core2 Duo, Pentium D, Pentium Dual Core, Pentium 4, Celeron, Celeron D |
| Northbridge Chipset | Intel 945P/945G |
| Southbridge Chipset | Intel ICH7R |
| Expansion Slots | 3 PCI, 1 PCI‑Express x16, 1 AGI Express (PCI‑Express x4), 1 PCI‑Express x1 |
| LAN | Realtek RTL8111B Gigabit LAN (10/100/1000 Mb/s) |
| eSATAII Ports | 2 eSATAII 3.0 Gb/s (shared with SATAII) |
All ASRock CONROE1333-ESATA2 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the ConRoe1333-eSATA2 motherboard use?
It uses an LGA 775 socket for Intel processors.
Does the motherboard support RAID configurations?
Yes, it supports RAID 0, RAID 1, RAID 10, RAID 5 and Intel Matrix Storage.
