Key facts
- Brand
- ASRock
- Model
- CONROE1333-1394
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

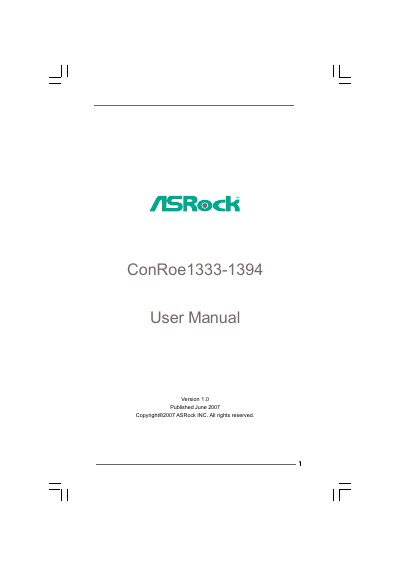

ASRock ConRoe1333-1394 Motherboard User Manual
This manual introduces the ASRock ConRoe1333-1394 motherboard, detailing its package contents, technical specifications, and layout. It guides users through hardware installation, including CPU, memory, and expansion cards, and explains BIOS configuration and security settings.
The document also covers software support, driver installation from the included support CD, and provides troubleshooting notes and warranty information. All instructions are aimed at end‑users and system integrators who need to set up and maintain the motherboard.
ASRock CONROE1333-1394 specifications
| Form Factor | Micro ATX 9.6 in × 9.6 in (24.4 cm × 24.4 cm) |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Dual Core, Core 2 Duo, Pentium D, Pentium Dual Core, Pentium 4, Celeron, Celeron D (FSB 1333/1066/800/533 MHz) |
| Chipset | Northbridge Intel 945GC A2, Southbridge Intel ICH7 |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Audio Codec | Realtek ALC888 7.1‑channel HD Audio |
| LAN | Realtek RTL8111B/C Gigabit Ethernet (10/100/1000 Mb/s) |
| SATA Connectors | 4 × SATA II 3.0 Gb/s (no RAID, no Hot‑Plug) |
Source: ASRock ConRoe1333-1394 Motherboard Quick Installation Guide
All ASRock CONROE1333-1394 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the ConRoe1333-1394 motherboard use?
It uses an LGA775 socket for Intel processors.
From: ASRock ConRoe1333-1394 Motherboard Quick Installation Guide
How many SATA II connectors are provided on the motherboard?
Four SATA II 3.0 Gb/s connectors are available.
From: ASRock ConRoe1333-1394 Motherboard Quick Installation Guide
Which CPU socket does the ASRock ConRoe1333-1394 motherboard use?
It uses an LGA 775 socket for Intel processors.
How many SATAII connectors are provided on the motherboard?
The board provides four SATAII 3.0 Gb/s connectors.
