Key facts
- Brand
- ASRock
- Model
- CONROE865GV
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-15
Start here

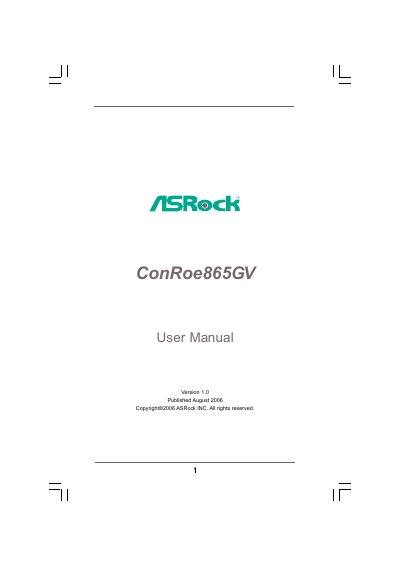

ASRock ConRoe865GV Motherboard User Manual
This manual introduces the ASRock ConRoe865GV Micro ATX motherboard, lists the package contents, and details the supported CPUs, memory types, and expansion slots. It also includes a supported AGP VGA card list and contact information for further assistance.
The document guides users through hardware installation, BIOS setup, and software support, including driver installation from the supplied support CD. Detailed BIOS screens such as Boot, Security, and Exit are described, along with troubleshooting notes and cautions.
ASRock CONROE865GV specifications
| Form Factor | Micro ATX (9.6‑in x 8.0‑in) |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Core 2 Duo, Pentium Xe, Pentium D, Pentium 4, Celeron (Conroe family) |
| Front‑Side Bus (FSB) | 800 MHz / 533 MHz |
| Chipset | Northbridge Intel 865GV, Southbridge Intel ICH5 |
| Memory Slots | 2 DDR DIMM slots (Dual Channel) |
| Maximum Memory | 2 GB |
| Supported Memory Types | DDR400 / DDR333 / DDR266 |
| USB Ports (I/O panel) | 6 USB 2.0 ports |
| SATA Connectors | 2 x Serial ATA 1.5 Gb/s |
| IDE Connectors | 2 x ATA100 IDE connectors (support 4 IDE devices) |
Source: ASRock ConRoe865GV Motherboard Quick Installation Guide
All ASRock CONROE865GV documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the ConRoe865GV motherboard use?
It uses an LGA775 socket for Intel processors.
From: ASRock ConRoe865GV Motherboard Quick Installation Guide
How much maximum memory can be installed?
The board supports up to 2 GB of DDR memory.
From: ASRock ConRoe865GV Motherboard Quick Installation Guide
Which CPUs are supported by the ConRoe865GV motherboard?
It supports LGA 775 Intel Core 2 Duo, Pentium Xe, Pentium D, Pentium 4 and Celeron D processors, including Conroe series with FSB 800 MHz.
What operating systems can be installed on this motherboard?
The board is compatible with Microsoft Windows 98 SE, ME, 2000 and XP.
