Key facts
- Brand
- ASRock
- Model
- 960GM-S3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 4
- Languages
- ZH · EN
- Last added
- 2012-05-10
Start here

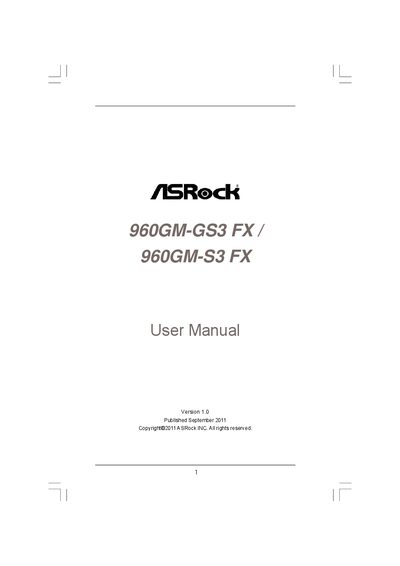

ASRock 960GM-GS3 FX / 960GM-S3 FX User Manual
This manual covers the ASRock 960GM‑GS3 FX and 960GM‑S3 FX micro‑ATX motherboards. It includes safety notices, FCC compliance, and warranty information, followed by a detailed table of contents.
The guide walks you through package contents, CPU and memory installation, expansion slot usage, SATA and IDE connections, BIOS configuration, operating‑system installation, and the support CD utilities. It also lists specifications, unique features, and troubleshooting tips.
ASRock 960GM-S3 specifications
| CPU socket | Socket AM3+ |
|---|---|
| Maximum memory | 8 GB |
| Integrated graphics | AMD Radeon 3000 |
| Shared video memory | 512 MB |
| Audio codec | Realtek ALC662 (5.1‑channel) |
| LAN controller | Realtek PCI‑Ex1 LAN 8105EL, 10/100/1000 Mb/s |
| USB ports | 4 x USB 2.0 |
Source: ASRock 960GM-S3 FX User Manual
All ASRock 960GM-S3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the ASRock 960GM-S3 FX motherboard support?
It supports Socket AM3+ processors.
What audio codec is used on the ASRock 960GM-S3 FX?
It uses a Realtek ALC662 5.1‑channel audio codec.
Which CPU sockets are supported by the 960GM7‑GS3 FX motherboard?
The board supports AM3 sockets, including AMD Phenom II, Athlon and Sempron processors (except models 920/940).
How many SATA ports does the motherboard provide?
It provides four SATA2 ports (8.0 Gb/s) with RAID 0, 1, 10 and JBOD support.
How many SATA ports are available and what speed do they support?
The motherboard provides four SATA2 ports operating at up to 8.0 Gb/s, with RAID options.
Which Windows operating systems are supported by these motherboards?
The motherboards support Windows 7, Windows 7 64‑bit, Windows Vista, Windows Vista 64‑bit, Windows XP, Windows XP Media Center and Windows XP 64‑bit.
