Key facts
- Brand
- ASRock
- Model
- 960GM
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-03-15
Start here

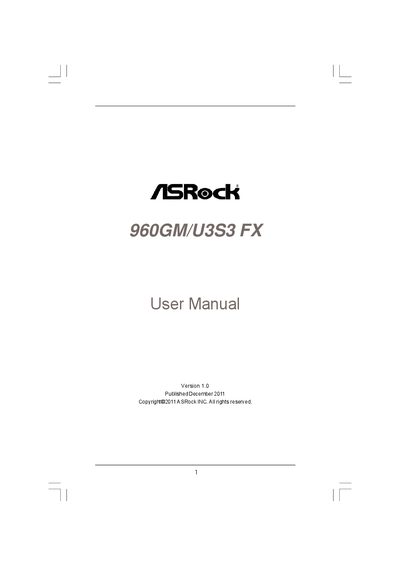

ASRock 960GM/U3S3 FX User Manual
This manual introduces the ASRock 960GM/U3S3 FX motherboard, a Micro ATX board that supports AMD AM3/AM3+ processors and features integrated Radeon HD 3000 graphics. It includes safety notices, warranty information, and links to the ASRock website for updates.
The guide covers hardware installation (CPU, memory, expansion slots, SATA, USB), BIOS configuration, over‑clocking features, driver and utility installation, and operating‑system support. It also describes the Support CD contents and provides troubleshooting tips.
ASRock 960GM specifications
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Socket | AM3+ (supports AM3 as well) |
| Chipset | Northbridge AMD 760G / Southbridge AMD SB710 |
| Audio Codec | Realtek ALC662, 5.1 CH HD Audio |
| LAN | Realtek RTL8111E Gigabit Ethernet with Wake‑On‑LAN |
| USB 3.0 Ports | 2 x USB 3.0 (Etron EJ168A) |
All ASRock 960GM documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU sockets are supported by the ASRock 960GM/U3S3 FX motherboard?
The board supports AMD AM3+ sockets and is also compatible with AM3 processors.
How many USB 3.0 ports does the motherboard provide?
It provides two USB 3.0 ports.
How many SATA II ports are on the ASRock 960GM/U3S3 FX motherboard?
The motherboard provides four SATA II ports, labeled PORT 0 through PORT 3.
Which Windows operating systems are supported?
The motherboard supports Windows 7/7 64‑bit, Windows Vista/Vista 64‑bit, Windows XP, Windows XP Media Center, and Windows XP 64‑bit.
What is the maximum memory capacity?
The board can hold up to 16 GB of DDR3 memory across its two DIMM slots.
