The ASRock 970A-G/3.1 motherboard uses the AMD 760G chipset and supports AM3+ processors. It also has DDR3 1800(Overclocking)/1600(Overclocking)/1333/1066/800 non-ECC, un-buffered memory with a maximum capacity of 8GB. The graphics card is equipped with AMD Radeon 3000, which supports D-Sub, with a maximum resolution of 2048 x 1536 @ 60Hz. For networking, the Realtek PCIEx1 LAN 8105EL is installed, with a speed of 10/100 Mbps Ethernet, supporting Wake-On-LAN and PXE.

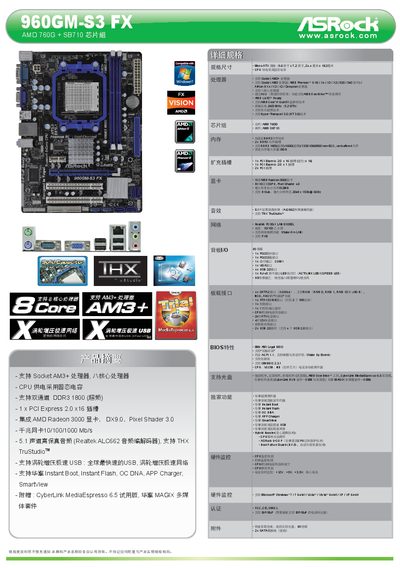

The manual details the hardware specifications of the ASRock 960GM-S3 FX motherboard, including support for Socket AM3+ CPUs, dual‑channel DDR3 memory up to 8 GB, a PCI Express 2.0 x16 slot, and integrated AMD Radeon 3000 graphics with up to 512 MB shared video memory. It also lists the onboard audio codec (Realtek ALC662), Gigabit Ethernet, USB 2.0 ports, SATA2 connectors, and various BIOS utilities such as Instant Boot, Instant Flash, and OC DNA.
Additional sections cover installation guidance, connector pin‑outs, power supply requirements, and bundled software utilities like CyberLink MediaEspresso and MAGIX multimedia suites. The document also mentions compliance certifications (FCC, CE, WHQL) and power‑saving features such as ErP/EuP support. This manual is written in Chinese.
| CPU socket | Socket AM3+ |
|---|---|
| Maximum memory | 8 GB |
| Integrated graphics | AMD Radeon 3000 |
| Shared video memory | 512 MB |
| Audio codec | Realtek ALC662 (5.1‑channel) |
| LAN controller | Realtek PCI‑Ex1 LAN 8105EL, 10/100/1000 Mb/s |
| USB ports | 4 x USB 2.0 |
It supports Socket AM3+ processors.
It uses a Realtek ALC662 5.1‑channel audio codec.
