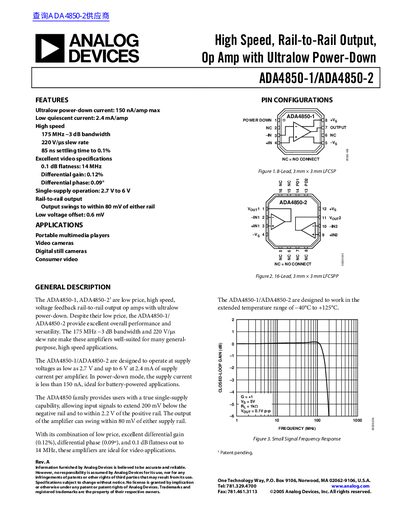

The ADA4850-1/ADA4850-2 is a high performance, low power op amp with ultralow power-down current, low quiescent current, high speed, and single-supply operation. It is ideal for applications such as portable multimedia players, video cameras, digital still cameras, and consumer video.
The Analog Devices ADA4850-1/ADA4850-2 are low-price, high-speed voltage feedback op amps featuring ultralow power-down current. They operate with a single supply from 2.7 V to 6 V and offer rail-to-rail output capability.
| -3 dB Bandwidth (Typical) | 175 MHz |
|---|---|
| Slew Rate | 220 V/us |
| Settling Time to 0.1% | 85 ns |
| Input Offset Voltage (Typical) | 42 mV |
| Operating Temperature Range | -40°C to +125°C |
The maximum power-down current is 150 nA per amplifier.
The device operates with a single supply from 2.7 V to 6 V.
