AD9216 is a dual, 3V, 10-bit, 65/80/105 MSPS analog-to-digital converter. It features dual high performance, single 3V supply operation, low power, flexible analog input, etc.
The AD9216 is a dual, 3 V, 10‑bit ADC offering sample rates of 65, 80 or 105 MSPS. It features integrated dual sample‑and‑hold amplifiers, a voltage reference, and a duty‑cycle stabilizer for reliable performance across a wide range of clock conditions. The device is supplied in a 64‑lead LFCSP package and is targeted at applications such as ultrasound equipment, communications receivers, handheld instruments, and low‑cost oscilloscopes.

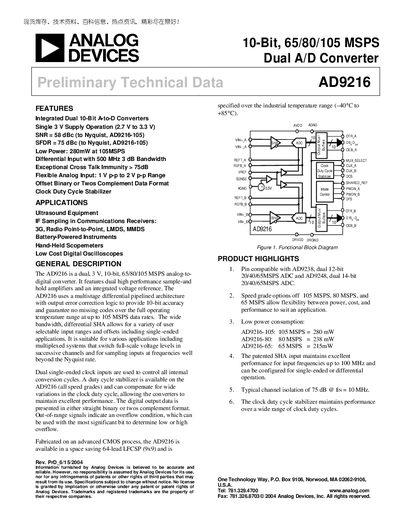

Key specifications include a maximum conversion rate of 105 MSPS, low power consumption (280 mW at 105 MSPS), selectable input spans of 1 Vpp or 2 Vpp, and high signal‑to‑noise performance (58 dBc SNR, 75 dBc SFDR). The datasheet provides detailed electrical characteristics, absolute maximum ratings, ordering information, and pin configuration diagrams.
| Signal‑to‑Noise Ratio (SNR) | 58 dBc |
|---|---|
| Spurious‑Free Dynamic Range (SFDR) | 75 dBc |
The AD9216 achieves an SNR of 58 dBc.
