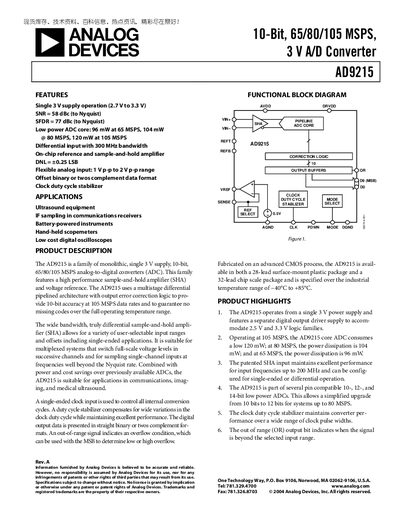

AD9215 is a 10-bit, 65/80/105 MSPS, 3V A/D converter manufactured by Analog Devices. It features single 3V operation, SNR = 58 dBc, SFDR = 77 dBc, low power ADC core, differential input, 300 MHz bandwidth, on-chip reference and sample-and-hold amplifier, DNL = ±0.25 LSB, flexible analog input, offset binary or twos complement data format, clock duty cycle stabilizer, and other features.
The AD9215 family from Analog Devices provides a 10‑bit analog‑to‑digital conversion solution that operates from a single 3 V supply (2.7 V‑3.3 V). It features a low‑power core (96 mW at 65 MSPS, 104 mW at 80 MSPS, 120 mW at 105 MSPS), a high‑performance sample‑and‑hold amplifier, and on‑chip reference.
Designed for ultrasound, communications receivers, handheld instruments and low‑cost oscilloscopes, the device offers a 300 MHz analog bandwidth, flexible input ranges (1 V‑2 V p‑p) and both differential and single‑ended operation.
| Resolution | 10 bits |
|---|---|
| Signal‑to‑Noise Ratio (to Nyquist) | 58 dBc |
| Input span (VREF = 1.0 V) | 2 V p‑p |
It runs from a single 3 V supply with a range of 2.7 V to 3.3 V.
