AD9215 is a 10-bit, 65/80/105 MSPS, 3V A/D converter with features such as single 3V supply operation, high signal-to-noise ratio, low power consumption, and flexible analog input.
The AD9215 is a family of monolithic, single‑supply, 10‑bit analog‑to‑digital converters offering 65, 80, or 105 MSPS conversion rates at a 3 V supply. It features a high‑performance sample‑and‑hold amplifier, on‑chip reference, and a clock‑duty‑cycle stabilizer, making it suitable for ultrasound, communications, and low‑cost oscilloscope applications.

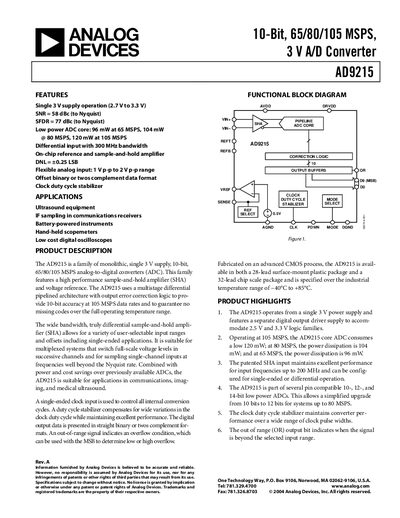

The datasheet provides full electrical specifications, absolute maximum ratings, pin descriptions, equivalent circuits, and typical performance graphs. It also lists the available 28‑lead TSSOP and 32‑lead LFCSP packages, ordering codes, and revision history for design engineers.
| Resolution | 10 bits |
|---|---|
| Supply Voltage (AVDD) | 3 V |
| Digital Output Driver Supply (DRVDD) | 2.5 V |
| Input Differential Range | 2 V p‑p |
The device uses a 3 V analog supply (AVDD) and a 2.5 V digital output driver supply (DRVDD).
