This document introduces safety instructions that must be followed during the installation and operation of NCAN-02 CANopen adapter module.

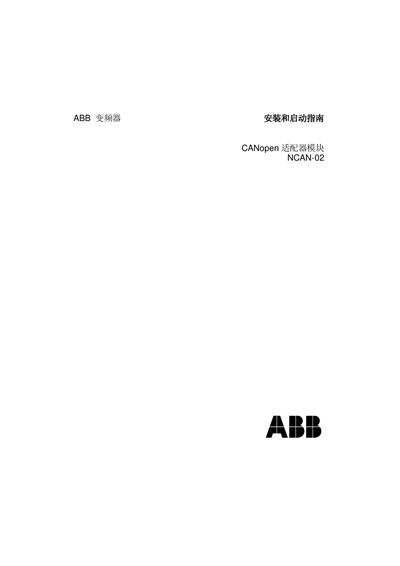

This guide covers the complete installation and startup process for the ABB NCAN-02 CANopen adapter module. It includes safety warnings, mechanical mounting, electrical wiring, DIP switch settings, and detailed programming steps for configuring the CAN controller and the inverter.
The document also describes CANopen communication setup, PDO mapping, diagnostic indicators, technical data, and environmental requirements. Appendices provide EDS file information, CANopen error codes, and additional technical specifications. This manual is written in Chinese.
| Storage temperature range | -55 °C to +85 °C |
|---|---|
| Installation temperature range | -20 °C to +70 °C |
| Operating temperature range | 0 °C to +50 °C |
| Maximum cable length between stations | 10 m |
| Transmission speed | 4 Mbit/s |
| Communication protocol | Distributed Drive Communication System (DDCS) |
| Connector colors | Blue – receiver, Gray – transmitter |
| Cable type and dimensions | Plastic‑core fiber optic cable, 1 mm diameter |
The maximum allowed cable length between stations is 10 meters.
The CANopen network operates at a transmission speed of 4 Mbit/s.
The module can operate in ambient temperatures from 0 °C up to +50 °C.
