MAX 3000A is a high-performance, low-cost CMOS EEPROM-based PLD device family from Altera Corporation. It is based on the Multiple Array MatriX (MAX®) architecture and supports 3.3V in-system programmability (ISP). The series provides devices with 600 to 5,000 usable gates.

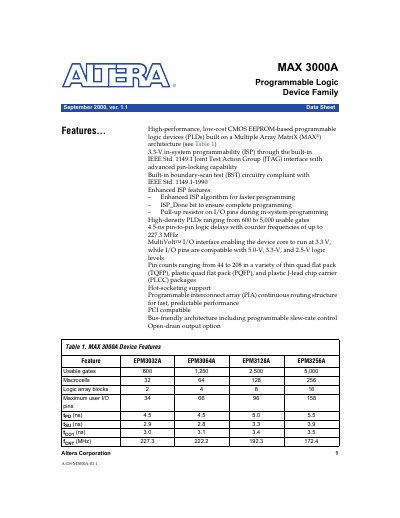

The document describes the MAX 3000A Programmable Logic Device (PLD) family, which consists of high-performance, low-cost CMOS EEPROM-based devices built on the Multiple Array Matrix (MAX) architecture. These devices offer high-density logic ranging from 600 to 5,000 usable gates and support 3.3-V in-system programmability (ISP) via the IEEE Std. 1149.1 JTAG interface.
| Usable gates | 600 to 5,000 |
|---|---|
| Supply voltage | 3.3 V |
| Pin-to-pin logic delays | 4.5 ns |
| Counter frequencies | up to 227.3 MHz |
| I/O voltage compatibility | 5.0-V, 3.3-V, and 2.5-V |
| Reprogramming cycles | up to 100 times |
The MAX 3000A devices offer high-density PLDs ranging from 600 to 5,000 usable gates.
The devices support counter frequencies of up to 227.3 MHz.
The devices can be programmed and erased up to 100 times.
