This document provides detailed information about the pin-outs and input/output pins of Altera Corporation's EPM7064 and EPM7064S products.

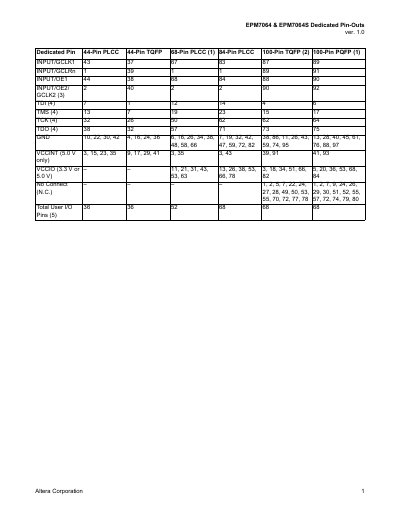

This document provides a comprehensive table of dedicated pin-outs for the Altera EPM7064 and EPM7064S programmable logic devices. It maps specific functions such as JTAG inputs (TDI, TMS, TCK, TDO), control signals (GCLK1, GCLK2, OE), and power connections to their corresponding physical pin numbers.
EPM7064S devices are not available in the 100-pin PQFP or 68-pin PLCC packages.
If the device uses JTAG ports for ISP, that pin is not available as a user I/O pin.
