Texas Instruments CDCF2509 3.3-V Phase-Lock Loop Clock Driver Datasheet

The CDCF2509 is a high-performance, low-skew, low-jitter, phase-lock loop (PLL) clock driver. It uses a PLL to precisely align, in both frequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal. It is specifically designed for use with synchronous DRAMs. The CDCF2509 operates at 3.3 V VCC. It also provides integrated series-damping resistors that make it ideal for driving point-to-point loads. One bank of five outputs and one bank of four outputs provide nine low-skew, low-jitter copies of CLK. Output signal duty cycles are adjusted to 50%, independent of the duty cycle at CLK. Each bank of outputs is enabled or disabled separately via the control.

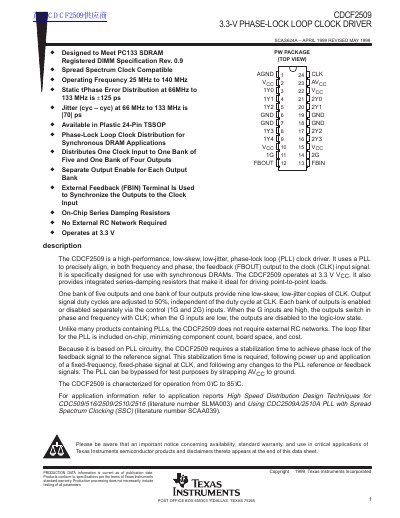

Texas Instruments CDCF2509 3.3-V Phase-Lock Loop Clock Driver Datasheet - cover page
Brand
Texas Instruments
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
11
File format
PDF
File size
139 KB
Published
01 August, 2012
Updated
28 September, 2023
MD5 checksum
09F350F24B645F61BA237FBCA439E2D1

About this manual

The CDCF2509 is a high-performance phase-lock loop (PLL) clock driver specifically designed to meet PC 133 SDRAM Registered DIMM specifications. It distributes one clock input to nine outputs, consisting of one bank of five and one bank of four. The device operates at 3.3V and includes on-chip series-damping resistors and a loop filter, eliminating the need for external RC networks.

What's inside

  • Description
  • Functional Block Diagram
  • Terminal Functions
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Timing Requirements
  • Electrical Characteristics
  • Switching Characteristics

Specifications

Operating Temperature Range0°C to 85°C
Clock Frequency Range25 MHz to 140 MHz
Jitter (Cycle-to-Cycle) @ 66-100 MHz+/- 70 ps

Frequently asked questions

Does the CDCF2509 require external RC networks?

No, it does not require external RC networks because the loop filter is included on-chip.

How can the PLL be bypassed?

The PLL can be bypassed by strapping AVcc to ground, which buffers CLK directly to the outputs.

What is the stabilization time required?

A stabilization time of 1/2 ms is required after power up or signal changes.
