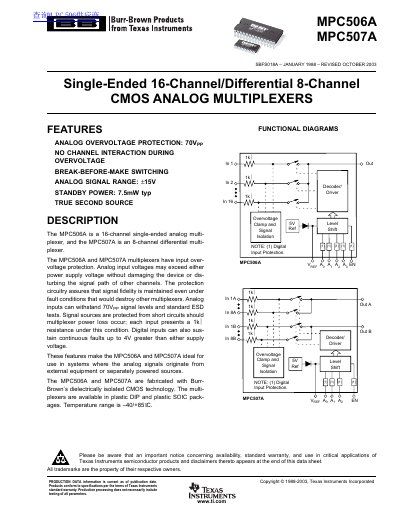

TEXAS INSTRUMENTS BB MPC506A MPC507A Single-Ended 16-Channel/Differential 8-Channel CMOS ANALOG MULTIPLEXERS handbook

About this manual

The MPC506A is a 16-channel single-ended analog multiplexer, while the MPC507A is an 8-channel differential multiplexer. Both devices feature Burr-Brown's dielectrically isolated CMOS technology and include input overvoltage protection capable of withstanding up to 70Vpp without damaging the device or disturbing other channels.

These multiplexers are available in plastic DIP and SOIC packages with an operating temperature range of -40°C to +85°C. Key electrical characteristics include low on-resistance (1.3kΩ typical), high off-isolation (68dB typical), and break-before-make switching to prevent channel interaction.

What's inside

• Features
• Functional Diagrams
• Description
• Electrical Characteristics
• Pin Configuration
• Truth Tables
• Absolute Maximum Ratings
• Typical Performance Curves
• Discussion of Specifications

Specifications

Frequently asked questions

What is the channel configuration for the MPC506A and MPC507A?

The MPC506A is a 16-channel single-ended analog multiplexer, while the MPC507A is an 8-channel differential multiplexer.

Can these devices handle input voltages higher than the supply voltage?

Yes, they have input overvoltage protection that allows analog inputs to withstand up to 70Vpp signal levels without damage.
