FQD2P40 / FQU2P40 is a 400V P-Channel MOSFET, using Fairchild's proprietary planar stripe DMOS technology, with extremely low on-state resistance, fast switching speed and high voltage resistance, suitable for electronic lamp ballasts.

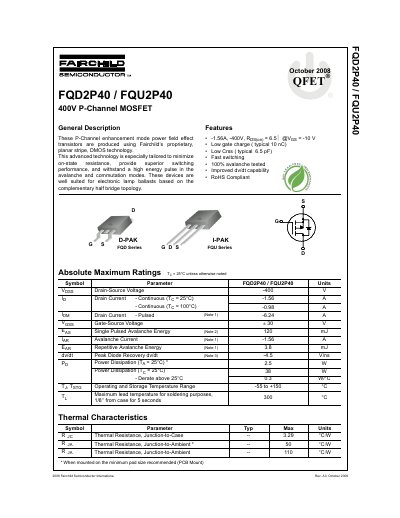

The document describes the FQD2P40 / FQU2P40, which are 400V P-Channel enhancement mode power MOSFETs produced using Fairchild's proprietary planar stripe DMOS technology. These devices are designed to minimize on-state resistance and provide superior switching performance, making them well-suited for electronic lamp ballasts based on complementary half bridge topology.
| Drain-Source Voltage | -400 V |
|---|---|
| Continuous Drain Current (TC = 25°C) | -1.56 A |
| Pulsed Drain Current | -6.24 A |
| Static Drain-Source On-Resistance | 6.5 ℧ @VGS = -10 V |
| Total Gate Charge (Typical) | 10 nC |
| Reverse Transfer Capacitance (Typical) | 6.5 pF |
| Operating and Storage Temperature Range | -55 to +150 °C |
