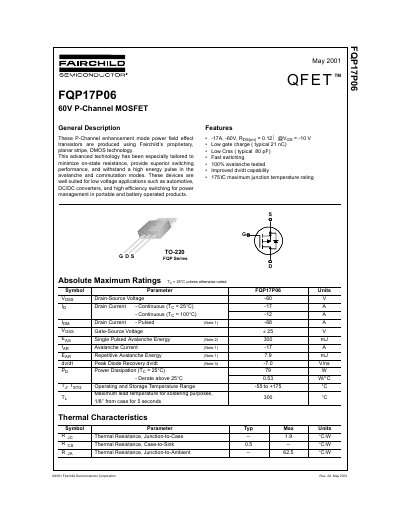

Fairchild FQP17P06 60V P-Channel MOSFET Datasheet

FQP17P06 is a P-channel MOSFET with 60V breakdown voltage, produced using Fairchild's proprietary planar stripe DMOS technology. It has the advantages of low on-state resistance, fast switching and high energy pulse withstand. It is suitable for low voltage applications such as automotive, DC/DC converters

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 685 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 32AC24C45CD367E1869B51952B2764AD
PDF: Fairchild FQP17P06 60V P-Channel MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild FQP17P06, a P-Channel enhancement mode power field effect transistor. The device utilizes Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. It is well-suited for low voltage applications such as automotive systems, DC/DC converters, and high efficiency switching for power management in portable products.

What's inside

General Description
Features
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Test Circuits
Package Dimensions
Trademarks
Disclaimer

Specifications

Drain-Source Voltage	-60 V
Continuous Drain Current (Tj = 25°C)	17 A
Maximum Junction Temperature	175°C
On-Resistance	0.122 Ω

Frequently asked questions

What is the maximum continuous drain current at 25°C?

The maximum continuous drain current at 25°C is 17 A.

What is the maximum junction temperature rating?

The maximum junction temperature rating is 175°C.

Is the device avalanche tested?

Yes, the device is 100% avalanche tested.
