The FQP24N08 is an 80V N-channel MOSFET that uses Fairchild's proprietary planar stripe DMOS technology. It offers low on-state resistance, superior switching performance, and withstand high energy pulses in avalanche and commutation mode. It is well suited for low voltage applications such as automotive, high efficiency switching for DC/DC converters, and DC motor control.

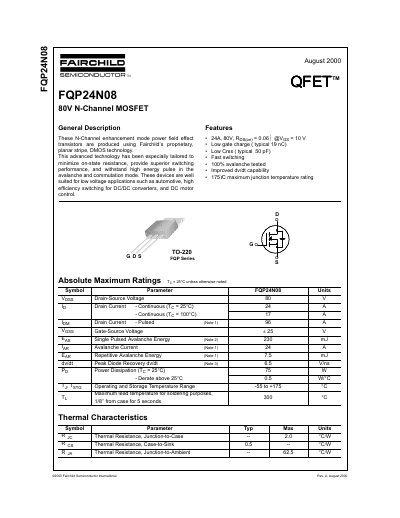

This document describes the Fairchild FQP24N08, a high-efficiency N-Channel MOSFET produced using proprietary planar stripe DMOS technology. The device is designed to minimize on-state resistance and provide superior switching performance for low voltage applications such as automotive systems, DC/DC converters, and motor control.
| Drain-Source Voltage | 80 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 24 A |
| Maximum Junction Temperature | +175 °C |
| On-Resistance (Typical) | 0.062 Ω |
| Total Gate Charge (Typical) | 19 nC |
The maximum junction temperature rating is 175°C.
