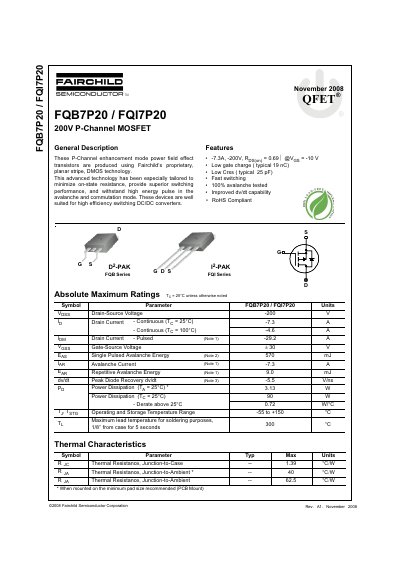

This document is a datasheet for the Fairchild Semiconductor FQB7P20 and FQI7P20, which are 200V P-Channel enhancement mode power field effect transistors. These devices utilize the manufacturer's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance suitable for high efficiency DC/DC converters.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical characteristics including graphs for capacitance, gate charge, and safe operating areas. It also includes mechanical dimensions for the D2-PAK package and test circuit diagrams.
| Drain-Source Voltage | -200 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 7.3 A |
| Power Dissipation (Ta = 25°C) | 3.13 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Total Gate Charge (Typ) | 19 nC |
| Package Type | D2-PAK |
Yes, the device is RoHS Compliant.
The maximum continuous drain current at 25°C is 7.3 A.
The typical on-state resistance is 0.692 Ohms at Vgs = -10V.
