2N7052 / 2N7053 / NZT7053 is an NPN Darlington transistor designed for applications requiring extremely high gain and high breakdown voltage. It can handle collector currents up to 1.0A.

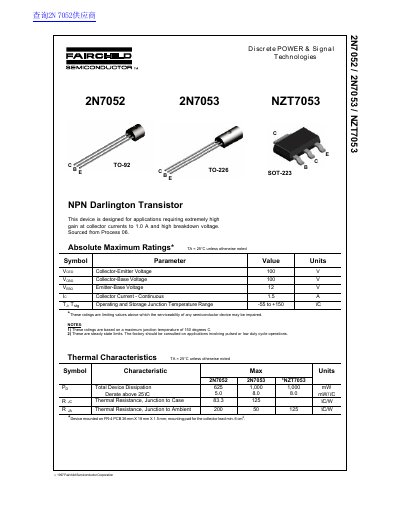

This document is a technical datasheet for the Fairchild Semiconductor 2N7052, 2N7053, and NZT7053 series of NPN Darlington transistors. The devices are designed for applications requiring extremely high gain at collector currents up to 1.0 A and high breakdown voltage.
The datasheet provides absolute maximum ratings, thermal characteristics, electrical characteristics including DC current gain and saturation voltages, and typical performance curves such as pulsed current gain versus collector current.
| Collector-Emitter Voltage (Vceo) | 100 V |
|---|---|
| Collector Current - Continuous | 1.5 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (2N7053) | 1,000 mW |
| DC Current Gain (Ic = 1.0 A) | 1,000 to 20,000 |
The maximum continuous collector current is 1.5 A.
The maximum collector-emitter voltage is 100 V.
The operating and storage junction temperature range is -55 to +150 °C.
