APT10M19BVR is a power device from APT, with a rated voltage of 100V, a rated current of 75A, a rated resistance of 0.019Ω, a maximum current of 300A, a maximum voltage of 100V, a maximum power of 300W, a maximum temperature of 150°C and a minimum temperature of -55°C.

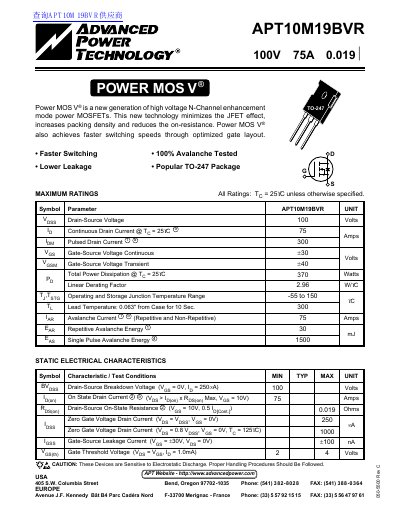

This document is a datasheet for the Advanced APT10M19BVR, a high voltage N-Channel enhancement mode Power MOSFET. The device utilizes Power MOS V® technology to minimize the JFET effect, increase packing density, and reduce on-resistance while achieving faster switching speeds.
| Package Type | TO-247 |
|---|
Yes, the device is 100% avalanche tested.
The maximum continuous drain current is 75 Amps when the temperature is 25°C.
The total power dissipation is rated at 370 Watts when the case temperature is 25°C.
