APT1201R2 is a MOSFET power switch from APT company, with a breakdown voltage of 1200V and a continuous current of 12A.

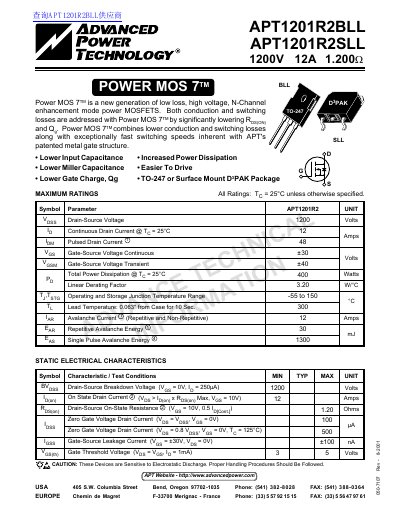

This document describes the APT1201R2BLL and APT1201R2SLL, a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETs. These devices feature significantly lowered output capacitance and gate charge, along with exceptionally fast switching speeds inherent with Advanced's patented metal gate structure.
| Drain-Source Voltage | 1200 Volts |
|---|---|
| Continuous Drain Current | 12 Amps |
| Pulsed Drain Current | 48 Amps |
| Total Power Dissipation | 400 Watts |
| Operating Junction Temperature Range | -55 to 150 C |
| Drain-Source On-State Resistance | 1.20 Ohms |
| Gate Threshold Voltage | 3 to 5 Volts |
| Input Capacitance | 2817 pF |
| Reverse Recovery Time | 850 ns |
The maximum continuous drain current is 12 Amps when the temperature is 25°C.
The total power dissipation is rated at 400 Watts when the temperature is 25°C.
The device operates and stores within a junction temperature range of -55 to 150 C.
