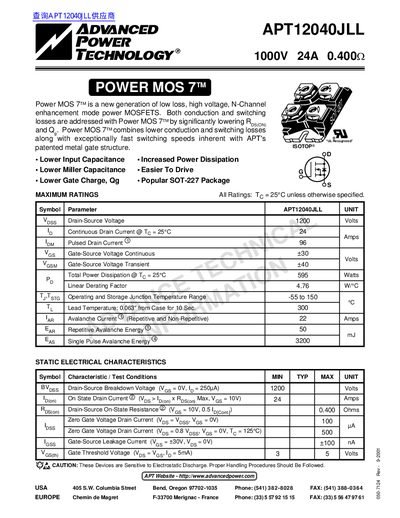

Advanced Power Technology APT12040JLL Power MOSFET Datasheet

This file is about the technical information of APT12040JLL, including characteristics, maximum ratings, etc.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 70 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: E7EB5C83BAF129648F888E381A287B9A
PDF: Advanced Power Technology APT12040JLL Power MOSFET Datasheet PDF

About this manual

This document provides technical specifications and characteristics for the APT12040JLL, a low loss, high voltage N-Channel enhancement mode Power MOSFET from Advanced Power Technology. The device features a patented metal gate structure designed to lower conduction and switching losses while maintaining fast switching speeds.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Source-Drain Diode Characteristics
Thermal Characteristics
Package Outline

Specifications

Drain-Source Voltage	1200 Volts
Continuous Drain Current	24 Amps
Total Power Dissipation	595 Watts
Operating Junction Temperature Range	-55 to 150 C
Drain-Source On-State Resistance	0.400 Ohms
Package Type	SOT-227

Frequently asked questions

What is the maximum continuous drain current?

The maximum continuous drain current at Tg = 25°C is 24 Amps.

What is the package type for this MOSFET?

The device uses a popular SOT-227 package.
