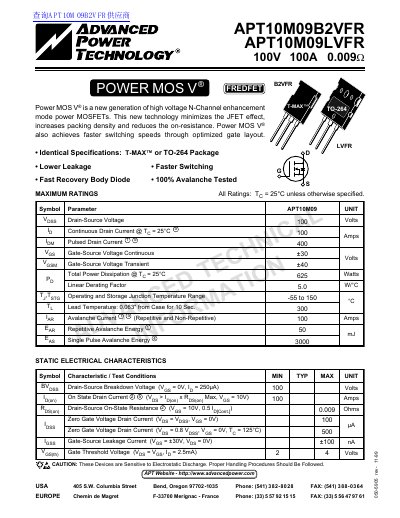

This is a technical information manual for APT10M09B2VFR and APT10M09LVFR, which details its maximum ratings, static electrical characteristics, electrical characteristics, etc.
This document provides technical information for the Advanced Power APT10M09 series of FREDFET T-MAX™ power MOSFETs. It covers maximum ratings such as drain-source voltage (100V) and continuous drain current (100A), along with static electrical characteristics like on-state resistance.
The datasheet also includes dynamic characteristics, thermal specifications, and package dimensions for the TO-264 (L) and T-MAX™ (B2) packages. It notes that these devices are sensitive to electrostatic discharge and lists relevant U.S. patents.
| Drain-Source On-State Resistance (RDS(on)) | 0.009 Ohm |
|---|---|
| Operating Junction Temperature (TJ) | -55 to 150 °C |
The device is available in TO-264 (L) and T-MAX™ (B2) packages.
The maximum continuous drain current is 100A when the case temperature is 25°C.
