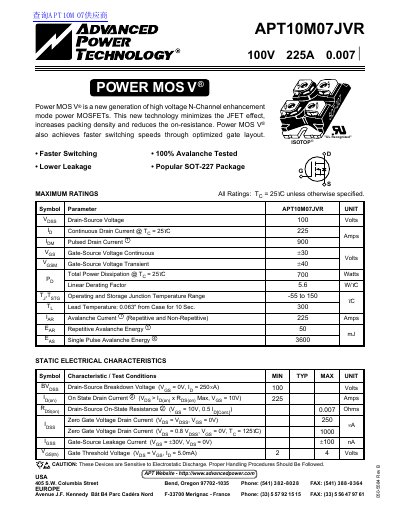

ADVANCED POWER TECHNOLOGY APT10M07JVR 100V 225A 0.007 handbook

This document is the datasheet for APT10M07JVR, which details the features and characteristics of the product, including maximum ratings, electrostatic characteristics, and packaging.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 74 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: CA80BB04B7581AD7D204E009E9D5D939
PDF: ADVANCED POWER TECHNOLOGY APT10M07JVR 100V 225A 0.007 handbook PDF

About this manual

This document is a technical datasheet for the APT10M07JVR, an N-Channel enhancement mode Power MOS V® device. The component features a 100V drain-source breakdown voltage and a continuous drain current of 225A at 25°C.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Source-Drain Diode Ratings
Thermal Impedance
Typical Performance Curves

Specifications

Package Type	SOT-227G (ISOTOP®)

Frequently asked questions

What is the maximum continuous drain current at a case temperature of 25°C?

The device supports a continuous drain current of 225 A when the case temperature is 25°C.

What is the maximum operating and storage junction temperature range?

The operating and storage junction temperature ranges from -55°C to +150°C.
