This document describes the features and characteristics of the AP100S20LCT high-voltage Schottky diode, including maximum DC reverse voltage, maximum peak repetitive reverse voltage, maximum working peak reverse voltage, maximum average forward current, RMS forward current, etc.

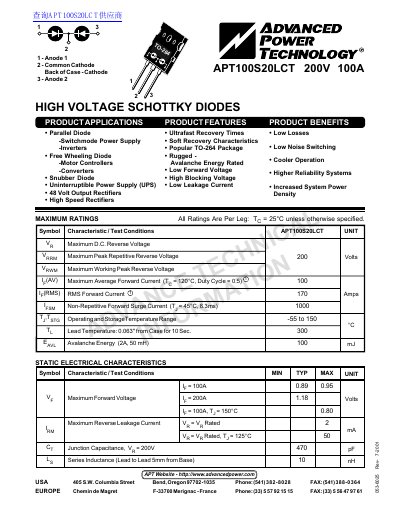

This document provides a datasheet for the Advanced Power Technology APT100S20LCT, a 200V 100A diode designed for applications such as switchmode power supplies, inverters, motor controllers, and converters. Key features include ultrafast recovery times, low losses, and a popular TO-264 package.
The device operates and stores within a temperature range of -55 to 150 C.
The maximum mounting torque is 11 Nm for screw types 6-32 or 3mm machine.
