APT100S20B is a switch power module produced by ADVANCED POWER company. This module has the advantages of ultra-low loss, low noise switching, higher reliability system, and increased system power density.

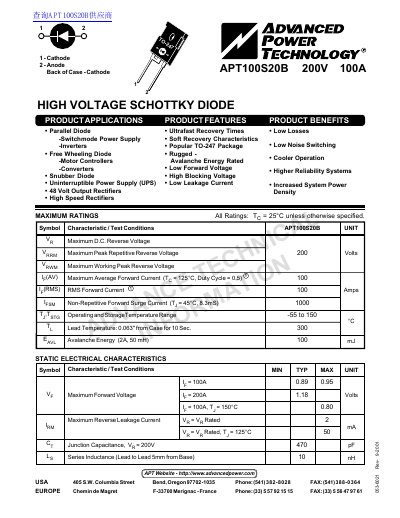

This document is a datasheet for the Advanced Power Technology APT100S20B, a high voltage Schottky diode rated for 200V and 100A. It is designed for applications such as switchmode power supplies, inverters, and uninterruptible power supplies (UPS). The device features ultrafast recovery times and is housed in a popular TO-247 package.
The datasheet provides comprehensive maximum ratings, static electrical characteristics, dynamic characteristics, and thermal and mechanical specifications. It includes a package outline drawing and lists relevant U.S. patents covering the device technology.
| Package Type | TO-247 |
|---|
The maximum average forward current is 100 Amps when the temperature is 125°C and the duty cycle is 0.5.
The device operates and stores in a temperature range from -55 to 150 degrees Celsius.
