APT100GT120JU3 is a power device with a maximum collector-emitter breakdown voltage of 1200V, a continuous collector current of 140A, a pulsed collector current of 280A, and a maximum power dissipation of 480W. The device is packaged in an ISOTOP® package and has low voltage drop, low tail current, low leakage current, high reliability and other features.

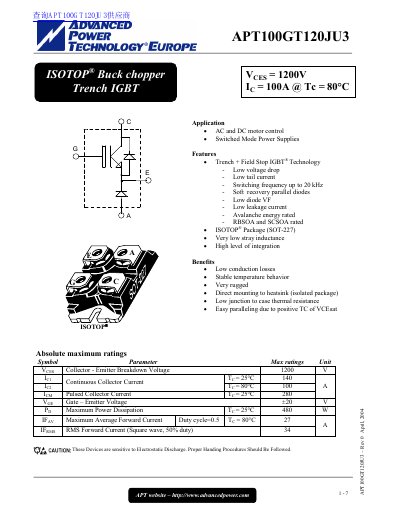

This document is a technical datasheet for the Advanced Power Technology APT100GT120JU3, an ISOTOP Buck chopper module. The device utilizes Trench + Field Stop IGBT technology and features soft recovery parallel diodes within an isolated SOT-227 package.
Key specifications include a collector-emitter breakdown voltage of 1200V and a continuous collector current of 100A at a case temperature of 80°C. The module is designed for applications such as AC and DC motor control and switched mode power supplies, offering benefits like low conduction losses and direct mounting to heatsinks.
| Pulsed Collector Current (Te = 25°C) | 280 A |
|---|---|
| Maximum Power Dissipation (Tc = 25°C) | 480 W |
| Package Type | ISOTOP (SOT-227) |
| Maximum Average Forward Current (Tc = 80°C) | 27 A |
| RMS Forward Current (Square wave, 50% duty) | 34 A |
The APT100GT120JU3 is designed for AC and DC motor control and Switched Mode Power Supplies.
It uses Trench + Field Stop IGBT Technology, which provides low voltage drop and low tail current.
The device supports a switching frequency up to 20 kHz.
