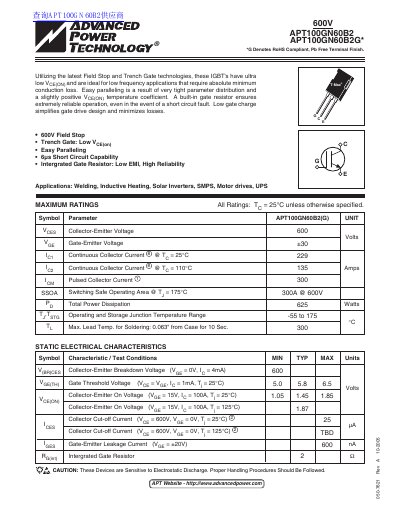

This document describes the typical performance curves and maximum ratings of the APT100GN60B2(G) product. The product utilizes the latest Field Stop and Trench Gate technologies, providing ultra-low VCE(ON) and is ideal for low frequency applications.
This document describes the APT100GN60B2 IGBT, which utilizes Field Stop and Trench Gate technologies to achieve ultra-low Vce(on) and minimal conduction loss. The device is designed for low frequency applications such as welding, inductive heating, solar inverters, and motor drives. Key features include easy paralleling due to tight parameter distribution, a built-in gate resistor for high reliability during short circuits, and low gate charge to simplify drive design.
The device is ideal for welding, inductive heating, solar inverters, SMPS, motor drives, and UPS.
Yes, the G* suffix denotes a RoHS compliant, Pb-free terminal finish.
