APT100GF60JU3 is a NPT IGBT device produced by APT company. Its maximum collector-emitter breakdown voltage is 600V, continuous collector current is 100A, and maximum power dissipation is 416W.

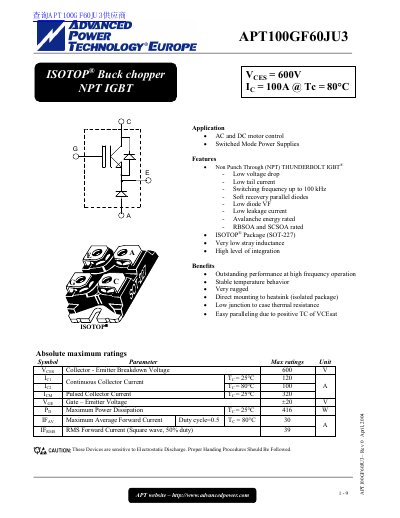

This document is a datasheet for the Advanced Power Technology APT100GF60JU3, a Non Punch Through (NPT) THUNDERBOLT IGBT packaged in ISOTOP (SOT-227). The device is designed for AC and DC motor control and Switched Mode Power Supplies, offering features such as low voltage drop, low tail current, and switching frequencies up to 100 kHz.
The datasheet provides absolute maximum ratings, electrical characteristics, and dynamic characteristics including capacitance and gate charge. It also details diode ratings, thermal and package characteristics, and includes various performance curves for switching times, energy losses, and safe operating areas.
| Collector - Emitter Breakdown Voltage | 600 V |
|---|---|
| Pulsed Collector Current | 320 A |
| Maximum Power Dissipation | 416 W |
| Switching frequency | up to 100 kHz |
| Package Type | ISOTOP (SOT-227) |
| Gate Threshold Voltage | 3 to 5 V |
| Turn-off Delay Time | 150 ns |
| Turn-on Switching Energy | 3.35 mJ |
| Turn-off Switching Energy | 2.85 mJ |
The device is intended for AC and DC motor control and Switched Mode Power Supplies.
The device supports switching frequencies up to 100 kHz.
Yes, the device is avalanche energy rated and has RBSOA and SCSOA ratings.
The maximum reverse leakage current is 300 pA at Vp= 600V and Tj = 125°C.
